Introduction

Sharks are an ancient group of cartilaginous fishes in the class Chondrichthyes, subclass Elasmobranchii, and subdivision Selachimorpha. The selachians include over 500 species that are further placed in two superorders: Squalomorphii and Galeomorphii. Modern sharks originated nearly 200 million years ago (Grogan, Lund, and Greenfest-Allen (2012)) and, since then, have diversified into nearly every major marine ecosystem. This evolutionary success has been attributed to the diversity of their locomotor modes and associated body shape (Lauder and Di Santo (2015),Thomson and Simanek (1977)). A modest body of work devoted to the ecomorphology of sharks has focused largely on caudal fin shape as it relates to ecology and locomotor modes Wilga and Lauder (2004). Sharks have heterocercal tails in which the caudal part of the notochord flexes dorsally and supports a large dorsal lobe of the fin, while, with more than a few exceptions, the ventral lobe is small.

bull shark

(A) The phylogenetic relationships and systematic placement of major groups of sharks and (B) Thomson and Simanek (1977)’s ecomorphological groups. Figure from Sternes and Shimada (2020).

In their seminal work on shark ecomorphology, Thomson and Simanek (1977) put forth that there were four shark morphotypes:

A group characterized by having a deep body, large pectoral fins, a symmetrical caudal fin with a narrow peduncle (i.e., base to the fin) and high-aspect ratio. A white shark represents this group.
A group characterized by a body less deep than Group 1 and a caudal fin that is swept (i.e., large heterocercal angle–the angle between the upper and lower lobes of the fin). This group includes most carcharhinid sharks such as the bull shark.
A group with a large head, blunt snout, a body that has anteriorly placed pectoral fins and posteriorly placed dorsal and pelvic fins, and a caudal fin with a low heterocercal angle and small ventral lobe. Catsharks (family Scyliorhinidae) and dogfish (order Squaliformes) represent this group.
A group characterized by a caudal fin with a higher aspect angle similar to that of Group 2 but lacking an anal fin, e.g., the dalatiids.

A white shark, Carcharodon carcharias, typical of Group 1.		A bull shark, Carcharhinus leucas, typical of Group 2.
A dogfish of the genus Squalus typical of Group 3.		A kitefin shark, Dalatias licha, typical of Group 4.

Sternes and Shimada (2020) used geometric morphometrics and a multivariate analysis to evaluate the groups proposed by Thomson and Simanek (1977) and found that sharks fell into one of two morphotypes (A and B). Their Group A was characterized by an elongate body, posteriorly placed dorsal fin, and a swept caudal fin, while Group B was characterized by a deeper body, anteriorly placed dorsal fins, and a less swept caudal fin. Thomson and Simanek (1977) suggested that the shape of species in these two broad ecomorphs evolved due to differences in ecological niche and locomotor behavior. Specifically, they posited that the species of elongate Group A are typically benthic and swim like eels whereas the deeper bodied species of Group B are often pelagic and swim like salmon or tunas.

bull shark

From Sternes and Shimada (2020) who found sharks could be assigned to two morphotype groups: A, elongate body, posteriorly placed dorsal fin, and a swept caudal fin; B, deeper body, anteriorly placed dorsal fins, and a less swept caudal fin.

Although the work of Thomson and Simanek (1977) and later Sternes and Shimada (2020) points to interesting patterns in shark body shape, neither study explicitly studied the role of habitat—that is, pelagic or benthic—in influencing the evolution of body shape. In particular, Sternes and Shimada (2020) merely observed that their two groups with different body shapes often varied in their habitat preference. In addition, Sternes and Shimada (2020) made no explicit, quantitative phylogenetic test of their patterns. This leaves open an important question: Do pelagic and benthic sharks have significantly different body shapes? Subsequently, we might also ask, Has the morphology of pelagic and benthic sharks evolved at the same rate? These are the questions we will take on in this project.

These questions represent an important thrust of evolutionary research: what macroevolutionary events have contributed to diversity, whether in species or phenotype. To answer questions like these requires that we essentially recapitulate the Sternes and Shimada (2020) body-shape data set using landmark-based geometric morphometrics. This is a relatively straightforward, if tedious, method of capturing shape variation in a group of interest. For this, you’ll digitize 14 homologous landmarks on images of some 265 species of sharks. Using the best practices in the field of geometric morphometrics to align our landmarks and extract shape information, we’ll assess morphological disparity in a phylogenetic framework and assess the difference in rates of morphological evolution between pelagic and benthic sharks.

Methods

Image acquisition

A few decades ago, a morphometric project like this would require visiting museum collections from around the world to take images of the specimens and species of interest. In fact, this was a major part of Prof. Kenaley’s PhD thesis, which included trips to natural history collections in France, Denmark, Great Britain, Taiwan, Japan, Monaco, New Zealand, and Australia. Ahhhhhh, the good ol’ days. Fortunately (or unfortunately), travel to such wonderful places may be avoided because several resources exist that contain a trove of images of fish-like vertebrates.

We’ll make use of shark images that Prof. Kenaley and his students have collected in the course of a nearly identical research project. Real quickly, this is how we did it.

We first began with images of drawings from Compagno (1984), Compagno (2001), and Ebert, Dando, and Fowler (2021), all authoritative texts on the identification, ecology, and evolution of sharks. Now, if we relied on only these drawings, we might expect to take some heat from reasonable people who contend that drawings are abstractions of specimens rather than direct representations, like a photograph would be. So, we developed a custom R workflow to obtain images for many of our 265 species from three public biodiversity data sources: iNaturalist, [FishBase], and the Global Biodiversity Information Facility (GBIF). iNaturalist images were retrieved using the rinat package, querying observations by scientific name and downloading photographs at the largest available resolution. FishBase images were scraped directly from species photo pages (https://www.fishbase.us/photos ) using HTML parsing, and GBIF images were accessed via the rgbif API, restricting searches to still images associated with preserved specimens. This resulted in a cache of images for the ~265 species included in a recent phylogeny of the elasmobranchs (Stein et al. (2018)).

Species list, phylogeny, and ecology

The 265 species we’ll analyze in the study were chosen because they had decent images from the aforementioned sources and cover the nooks and crannies of the Stein et al. (2018) phylogeny, giving a broad sample of the group. As we move on, we’ll use this table to keep track of the size and habitat for each species. The habitat data for our study come from Compagno (1984) and Compagno (2001). Let’s load these data now so we have them handy.

library(tidyverse)

## Warning: package 'ggplot2' was built under R version 4.5.2

## Warning: package 'tibble' was built under R version 4.5.2

## Warning: package 'tidyr' was built under R version 4.5.2

## Warning: package 'readr' was built under R version 4.5.2

## Warning: package 'purrr' was built under R version 4.5.2

## Warning: package 'dplyr' was built under R version 4.5.2

## Warning: package 'lubridate' was built under R version 4.5.2

## ── Attaching core tidyverse packages ──────────────────────── tidyverse 2.0.0 ──
## ✔ dplyr     1.2.0     ✔ readr     2.2.0
## ✔ forcats   1.0.1     ✔ stringr   1.6.0
## ✔ ggplot2   4.0.3     ✔ tibble    3.3.1
## ✔ lubridate 1.9.5     ✔ tidyr     1.3.2
## ✔ purrr     1.2.1
## ── Conflicts ────────────────────────────────────────── tidyverse_conflicts() ──
## ✖ dplyr::filter() masks stats::filter()
## ✖ dplyr::lag()    masks stats::lag()
## ℹ Use the conflicted package (<http://conflicted.r-lib.org/>) to force all conflicts to become errors

shark_dat <- read_csv("shark_data.csv")

## Rows: 288 Columns: 3
## ── Column specification ────────────────────────────────────────────────────────
## Delimiter: ","
## chr (2): sp, habitat
## dbl (1): PCL
##
## ℹ Use `spec()` to retrieve the full column specification for this data.
## ℹ Specify the column types or set `show_col_types = FALSE` to quiet this message.

Because we’ll be comparing body shape in sharks, this project is by definition a comparative one and we’ll need a phylogeny for the group. Fortunately, a relatively recent phylogenomic analysis of over 500 species of elasmobranchs (sharks + batoids) has been published by Stein et al. (2018). Unfortunately, there is some phylogenetic discordance in this study. Specifically, when researchers analyze phylogenetic relationships, they typically repeat their analysis in a process known as bootstrapping. In phylogenetics, bootstrapping is conducted using the columns of the character matrix. Each pseudoreplicate contains the same number of species (rows) and characters (columns) randomly sampled from the original matrix, with replacement. A phylogeny is reconstructed from each pseudoreplicate, with the same methods used to reconstruct the phylogeny from the original data. This often results in a dataset of trees that have conflicting relationships—that is, phylogenetic uncertainty—and this was the case for the Stein et al. (2018) study. We’ll have to account for this in our analysis. But, more on that later . . .

In any case, we’ve used the taxa studied in this paper to find our images and we’ll use a tree file representing the phylogeny for our comparative analysis.

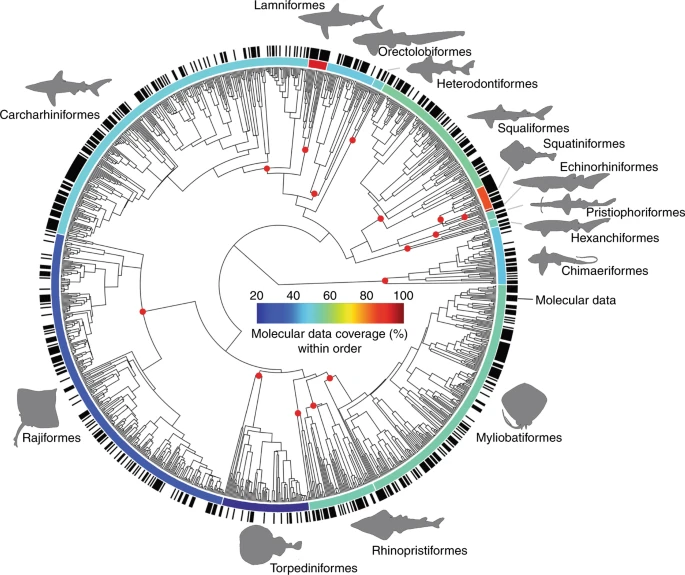

The phylogenetic relationships of the elasmobranchs according to Stein et al. (2018).

Geometric morphometrics

As you have learned in class and in your reading, researchers interested in comparing shape change between species often use landmark-based geometric morphometrics. A geometric morphometric study such as ours generally follows these steps:

Data collection: select landmarks of interest, usually through digitization of specimen images.
Data standardization: Make landmarks comparable across all specimens, usually through superimposition.
Analysis: choose a statistical approach appropriate to the questions.
Interpretation: use the outcome of the statistical analysis to assess the original questions.

Digitization and landmarking

You and your team/group will be assigned around approximately 100 images representing about 40 of the ~265 species to digitize. Your team’s images have been pushed to your team’s repo. With the images now in place, we’re ready to commence digitizing. We’ll do so in the StereoMorph package, a library of functions designed for digitization and seamless integration with other R packages integral to geometric morphometrics (e.g., geomorph). In particular, we’ll use StereoMorph’s digitizeImages() which, when run, creates an interactive web browser session in which the user places a number of specified landmarks on all images in a specific directory.

Before we move on with this, some workflow hygiene . . . For this part of the project, Prof. Kenaley recommends that each team member create their own script for digitizing, perhaps named something logical and unique, like “kenaley_stereomorph.R”. It’s in this script that we’ll digitize and produce our landmarks, the essential data of this project, i.e., there’s no need to include it in your submitted reports as a code chunk. Now, let’s walk through how to assemble the script for digitization in StereoMorph.

First, make sure you install StereoMorph (i.e., install.packages("StereoMorph")). Prime the script with the appropriate library() calls.

library(tidyverse) #always
library(StereoMorph)

Next, we’ll have to specify in what directory our images reside and to which directory the landmark data should be written. That is, our script will save the landmark images as modified text files that contain the coordinates of our landmarks and we need a place to store them. For instance, say my images were in a directory named “shark_images” and I want the landmarks I generate to reside in a directory “shark_landmarks”, I might add these important lines.

image_directory <- "shark_images"
landmark_directory <- "shark_landmarks"

if (!dir.exists(landmark_directory)) { dir.create(landmark_directory) }

The first two lines generate those character objects we’ll pass on to our digitizing function. The third creates the landmark directory, but only does so if it doesn’t already exist—we’d hate to overwrite it if it had data in it.

Next, we need to establish what landmarks we want to digitize. Our shape analysis will be based on 14 landmarks identified here.

We want to store the names of these 14 landmarks so that StereoMorph's digitizing function, digitizeImages(), will know how many landmarks should be placed on the images. If we make this vector of point names descriptive, we’ll know where to place the points while we’re digitizing. Something like this satisfies those two objectives nicely.

landmarks_ref <- c("1_snout", #tip of the snout
                   "2_dorsal_base_ant", #where the anterior base of the dorsal fin meets the body
                   "3_dorsal_tip", #apex of the dorsal fin
                   "4_dorsal_base_post",#where the posterior base of the dorsal fin meets the body
                   "5_cadual_base_dor",#where the anterior base of the caudal fin meets the body
                   "6_cadual_tip_dor", #tip of the dorsal lobe of caudal fin
                   "7_cadual_tip_vent", #tip of the ventral lobe of caudal fin
                   "8_caudal_base_vental", #where the postrio base of the caudal fin meets the body
                   "9_pelvic_base_post", #where the poster base of the pelvic fin meets the body
                   "10_pelvic_base_ant", #where the anterior base of the pelvic fin meets the body
                   "11_pect_base_post", #where the posterio base of the pectoral fin meets the body
                   "12_pect_base_ant", #where the anterior base of the pector fin meets the body
                   "13_mouth_post", #posterior margin of upper jaw/mouth
                   "14_mouth_ant") #anerior margin of mouth

With these preliminaries out of the way, we can now start digitizing using digitizeImages(). Note that the landmarks.ref argument takes the landmark vector we just created. Also note that the image.file and shapes.file arguments take our image and landmark directories, respectively. Less crucially, we can also control how the points will look in the session with these other arguments. Lastly, notice that we don’t pass the output of digitizeImages() to any object. That’s because the output is text files—we merely need to run this function to produce the app we run to get them. Let’s do that.

digitizeImages(image.file = image_directory,
               shapes.file = landmark_directory,
               landmarks.ref = landmarks_ref,
               landmark.color.blur = "cyan", #colors for easy vieing.
               landmark.color.focus = "yellow",
               control.point.color.blur = "orchid",
               control.point.color.focus = "hotpink")

Right away, you’ll notice the function produced a browser window in RStudio (see below). StereoMorph uses the shiny package to create an application interface.

This browser window is small and cumbersome. It’s usually best to click on the “Open in Browser” button so that the same window will be loaded in your default web browser (e.g., Safari, Chrome, etc.)

This looks a lot better. Notice that the app displays the first image from your image directory as well as a series of tabs to the upper right, one each for “settings”, “landmarks”, “curves” and “scaling”. Click on the “settings” tab so that we can have a closer look and set some options that will make our digitizing easier.

You’ll want to select “Auto-advance”. This setting automatically advances to the next landmark after you place one on the image. Other options may be important for other projects, but autoadvance is perhaps the only beneficial one. Let’s now have a look at the landmarks tab, the business end of the app.

Notice that the character strings in our landmarks_ref vector populate a landmark list and the first “1_snout” is bolded, indicating that this is the active point. That is, where you put the cursor on the image and press “x”, a coordinate will appear in that bolded landmark line. Give it a shot: put the cursor somewhere near where you want to mark the snout and type “x”. You’ll see that when you type “x”, x-y coordinates appear, and, due to the autoadvance setting, the next landmark, “2_dorsal_base_ant”, becomes bolded and active. Continue on like this and you’ll very quickly have all 14 landmarks digitized. Once you’ve done this, click on “Save”. This will tell the app to use some nifty R code to output your landmark coordinates as a text file and do so in your chosen “shark_landmarks” directory. Click “Next image” and you’re ready to do this again. You’ll repeat this process for all the images your team is responsible for. In the end, you’ll end up with 100 or so landmark files,

list.files("shark_landmarks")

##  [1] "Aculeola_nigra_1.txt"              "Aculeola_nigra_5.txt"
##  [3] "Alopias_pelagicus_2.txt"           "Alopias_superciliosus_1.txt"
##  [5] "Alopias_vulpinus_1.txt"            "Alopias_vulpinus_2.txt"
##  [7] "Apristurus_aphyodes_1.txt"         "Apristurus_australis_5.txt"
##  [9] "Apristurus_australis_7.txt"        "Apristurus_brunneus_3.txt"
## [11] "Apristurus_manis_2.txt"            "Apristurus_sinensis_1.txt"
## [13] "Asymbolus_rubiginosus_1.txt"       "Atelomycterus_baliensis_2.txt"
## [15] "Atelomycterus_baliensis_3.txt"     "Atelomycterus_marmoratus_2.txt"
## [17] "Bythaelurus_canescens_3.txt"       "Carcharhinus_albimarginatus_1.txt"
## [19] "Carcharhinus_amblyrhynchos_10.txt" "Carcharhinus_brevipinna_5.txt"
## [21] "Carcharhinus_dussumieri_3.txt"     "Carcharhinus_falciformis_2.txt"
## [23] "Carcharhinus_fitzroyensis_1.txt"   "Carcharhinus_limbatus_1.txt"
## [25] "Carcharhinus_macloti_1.txt"        "Carcharhinus_obscurus_1.txt"
## [27] "Carcharias_taurus_2.txt"           "Centrophorus_atromarginatus_1.txt"
## [29] "Centrophorus_granulosus_4.txt"     "Centrophorus_moluccensis_1.txt"
## [31] "Centroscyllium_granulatum_5.txt"   "Centroscymnus_owstonii_3.txt"
## [33] "Cephaloscyllium_albipinnum_1.txt"  "Chiloscyllium_hasseltii_1.txt"
## [35] "Chlamydoselachus_anguineus_4.txt"  "Dalatias_licha_2.txt"
## [37] "Deania_calcea_5.txt"               "Echinorhinus_brucus_2.txt"
## [39] "Etmopterus_brachyurus_2.txt"       "Etmopterus_granulosus_4.txt"
## [41] "Eusphyra_blochii_1.txt"            "Galeocerdo_cuvier_3.txt"
## [43] "Galeocerdo_cuvier_5.txt"           "Galeorhinus_galeus_1.txt"
## [45] "Galeus_polli_1.txt"                "Ginglymostoma_cirratum_3.txt"
## [47] "Halaelurus_lineatus_1.txt"         "Hemipristis_elongata_1.txt"
## [49] "Hemitriakis_leucoperiptera_1.txt"  "Heptranchias_perlo_7.txt"
## [51] "Heterodontus_mexicanus_1.txt"      "Hexanchus_griseus_1.txt"
## [53] "Iago_omanensis_1.txt"              "Isistius_brasiliensis_1.txt"
## [55] "Lamna_nasus_1.txt"                 "Mitsukurina_owstoni_3.txt"
## [57] "Mustelus_lunulatus_1.txt"          "Mustelus_mosis_3.txt"
## [59] "Nasolamia_velox_1.txt"             "Negaprion_acutidens_4.txt"
## [61] "Orectolobus_ornatus_1.txt"         "Oxynotus_centrina_3.txt"
## [63] "Prionace_glauca_4.txt"             "Pseudocarcharias_kamoharai_1.txt"
## [65] "Rhizoprionodon_taylori_1.txt"      "Scoliodon_laticaudus_2.txt"
## [67] "Scyliorhinus_canicula_6.txt"       "Somniosus_antarcticus_1.txt"
## [69] "Sphyrna_zygaena_1.txt"             "Squalus_megalops_2.txt"
## [71] "Triaenodon_obesus_1.txt"

list.files("shark_landmarks") %>%  length

## [1] 71

Note that the text files are automatically named according to the image on which the landmarks are based. This is important for at least two reasons. First, it’s easy link the landmarks back to the image, leaving us capable of assessing the quality of the landmarks and images later. Second, with the images in their directory and the landmarks in a directory of their own, if you run digitizeImages() again, exactly as before, the function links the landmarks files to the images via the file names. Thus, this workflow establishes something like a landmarking project that you can come back to, refining landmarks as needed.

When digitizing with digitizeImages() and the app, a few key strokes will be important for navigating through the landmark list:

“x” produces a set of landmark coordinates
“n” advances to the next landmark making it active
“p” goes back to the previous landmark making it active
“d” deletes the active landmark

After your team has completed landmarking the assigned species, push them to your team’s repo in a “shark_landmarks” directory. Once all the data appear across the repos, Prof. Kenaley will evaluate the quality of the landmarks and do some post-processing if required. He’ll then push the full dataset to all the team repos.

Superimposition

After digitizing landmarks, we must remove the distracting variations of size, orientation, and position that can vary between specimens and thus add noise to the analysis of shape. This can be mitigated by using a superimposition method. Generalized Procrustes analysis (GPA) is the superimposition method of choice nowadays. GPA removes the variation of size, orientation, and position by superimposing the landmarks in a common coordinate system. The landmarks for all specimens are optimally translated, rotated, and scaled based on a least-squares estimation. The first step is translation and rotation to minimize the squared and summed differences (squared Procrustes distance) between landmarks on each specimen. Then the landmarks are individually scaled to the same units of centroid size. Centroid size is the square root of the sum of squared distances of the landmarks in configuration to their mean location. The translation, rotation, and scaling bring the landmark configurations for all specimens into a common coordinate system so that the only differing variables are based on shape alone. The new superimposed landmarks can now be analyzed in multivariate statistical analyses.

To perform a Procrustes superimposition on our landmark data—along with many other analyses—we will turn to the geomorph package. Please install and load geomorph. But, before we do, let’s download and read in about 55 or so landmark files that Prof. Kenaley produced ahead of this project. You can find these example files here. You’ll have to download this compressed directory and unzip it to your project directory. You’ll also have to download and install the abind package as well. Note: You can skip this step if you’ve already completed your landmarking. Also note, these are just your landmarks. You will need to download the full data set evaluated by Prof. K.

To get started with superimposition, let’s load the package geomorph. Whether you unzip the “shark_landmarks.zip” directory to your project directory, or you’re working with the full dataset, you have a folder named “shark_landmarks”, just as before. Our first operation will be to read in the landmarks in the “shark_landmarks” directory using StereoMorph’s readShapes() function. For work in geomorph, we need to convert this object to a geomorphShapes object.

library(geomorph)

## Warning: package 'geomorph' was built under R version 4.5.2

## Loading required package: RRPP

## Loading required package: Matrix

##
## Attaching package: 'Matrix'

## The following objects are masked from 'package:tidyr':
##
##     expand, pack, unpack

# load in landmarks
stereomorph_landmarks <- StereoMorph::readShapes(landmark_directory)

#convert
geomorph_landmarks <- geomorph::readland.shapes(stereomorph_landmarks)

## Warning in GMfromShapes0(Shapes): No specimens have scaling.  Unscaled landmarks imported, as a result

#take a peak
geomorph_landmarks$landmarks %>% head

## $Aculeola_nigra_1
##                      [,1] [,2]
## 1_snout                10  186
## 2_dorsal_base_ant     256  134
## 3_dorsal_tip          329  118
## 4_dorsal_base_post    338  109
## 5_cadual_base_dor     524   92
## 6_cadual_tip_dor      640  122
## 7_cadual_tip_vent     576  149
## 8_caudal_base_vental  519  115
## 9_pelvic_base_post    456  132
## 10_pelvic_base_ant    408  173
## 11_pect_base_post     193  210
## 12_pect_base_ant      171  228
## 13_mouth_post          56  214
## 14_mouth_ant           32  209
##
## $Aculeola_nigra_5
##                      [,1] [,2]
## 1_snout                91  269
## 2_dorsal_base_ant     446  200
## 3_dorsal_tip          536  201
## 4_dorsal_base_post    508  212
## 5_cadual_base_dor     824  236
## 6_cadual_tip_dor      991  213
## 7_cadual_tip_vent     884  301
## 8_caudal_base_vental  790  264
## 9_pelvic_base_post    662  285
## 10_pelvic_base_ant    622  298
## 11_pect_base_post     368  306
## 12_pect_base_ant      333  283
## 13_mouth_post         189  286
## 14_mouth_ant          150  288
##
## $Alopias_pelagicus_2
##                      [,1] [,2]
## 1_snout                39  165
## 2_dorsal_base_ant     163  139
## 3_dorsal_tip          186  106
## 4_dorsal_base_post    192  141
## 5_cadual_base_dor     297  150
## 6_cadual_tip_dor      607   92
## 7_cadual_tip_vent     321  203
## 8_caudal_base_vental  299  177
## 9_pelvic_base_post    248  183
## 10_pelvic_base_ant    230  188
## 11_pect_base_post     140  184
## 12_pect_base_ant      108  188
## 13_mouth_post          69  179
## 14_mouth_ant           60  179
##
## $Alopias_superciliosus_1
##                      [,1] [,2]
## 1_snout                40  173
## 2_dorsal_base_ant     221  132
## 3_dorsal_tip          257   89
## 4_dorsal_base_post    255  136
## 5_cadual_base_dor     365  151
## 6_cadual_tip_dor      603   72
## 7_cadual_tip_vent     389  202
## 8_caudal_base_vental  362  177
## 9_pelvic_base_post    310  186
## 10_pelvic_base_ant    281  194
## 11_pect_base_post     173  196
## 12_pect_base_ant      138  196
## 13_mouth_post          79  189
## 14_mouth_ant           66  189
##
## $Alopias_vulpinus_1
##                      [,1] [,2]
## 1_snout                17  135
## 2_dorsal_base_ant     163  109
## 3_dorsal_tip          192   73
## 4_dorsal_base_post    191  109
## 5_cadual_base_dor     319  122
## 6_cadual_tip_dor      619   21
## 7_cadual_tip_vent     339  179
## 8_caudal_base_vental  318  153
## 9_pelvic_base_post    249  159
## 10_pelvic_base_ant    230  160
## 11_pect_base_post     134  164
## 12_pect_base_ant       98  160
## 13_mouth_post          45  156
## 14_mouth_ant           36  152
##
## $Alopias_vulpinus_2
##                      [,1] [,2]
## 1_snout                38  225
## 2_dorsal_base_ant     157  190
## 3_dorsal_tip          185  144
## 4_dorsal_base_post    191  193
## 5_cadual_base_dor     319  206
## 6_cadual_tip_dor      608  153
## 7_cadual_tip_vent     331  263
## 8_caudal_base_vental  313  230
## 9_pelvic_base_post    248  239
## 10_pelvic_base_ant    220  245
## 11_pect_base_post     134  249
## 12_pect_base_ant      107  245
## 13_mouth_post          65  238
## 14_mouth_ant           52  237

Landmarks stored in a geomorphShapes object are done so in a 3-dimensional array, that is, essentially a list of similarly sized 2D matrices, where the position of the $i^{th}$ matrix is given by the $i^{th}$ index of the third dimension, i.e., array[,,i]. This is a little wonky, but it’s how geomorph functions expect landmarks to be arranged.

With a proper geomorphShapes object in place, we’re now free to move on to the superimposition with the geomorph function gpagen(). We’ll do this by saving the output to gpa and plot the 14 aligned and superimposed landmarks for all the specimens.

#gpa
gpa <- gpagen(geomorph_landmarks,ProcD = F )

##
## Performing GPA
##   |                                                                              |                                                                      |   0%  |                                                                              |==================                                                    |  25%  |                                                                              |===================================                                   |  50%  |                                                                              |====================================================                  |  75%  |                                                                              |======================================================================| 100%
##
## Making projections... Finished!

#plot superimposition
plot(gpa)

We’re now ready to start analyzing the data.

Analysis Part I: A Morphospace

In geometric morphometric analysis, researchers first turn to describing the axes of shape variation. Indeed, this is what Sternes and Shimada (2020) did to produce the figure above. This representation, which is what we’re after, is often termed a morphospace, a representation of the shapes the study group does and does not have.

To develop such a thing, biologists usually turn to principal components analysis (PCA) whereby a very complicated suite of variables is distilled into a set of fewer variables that describe the important variance among the original variables. The coordinates contained in our gpa object describe dozens of variables: scaled distances between all the landmarks. So we have many variables to consider and this becomes, very quickly, a serious multivariate problem. PCA is suited to multivariate analysis because it reduces the complexity of the data, taking many variables and distilling them into just a few. At its core, PCA produces a series of regressions, or vectors, that pass through the values of the original variables. This operation is performed iteratively, with the first vector (the first principal component, PC1), drawn through the variable space that accounts for the most variance in the data set. After the combination of variables forming PC1 is removed, a subsequent vector (PC2) is drawn through another unique variable space that describes the second greatest amount of variance. This continues until most of the variance is captured, resulting in scores of PCs. The first two or three, however, are usually enough to describe a healthy amount of variance.

To perform PCA, we’ll use geomorph’s gm.prcomp() function like so, working with the gpa object’s coordinates, that is, the 3-D array that contains the Procrustes aligned landmarks. Plotting reveals our first result.

#PCA
pca <- gm.prcomp(gpa$coords)

#visualize
plot(pca)

Wow, now we’re getting close to the Sternes and Shimada (2020) results and answering, at least in part, one of our questions: Does habitat result in different body shapes? But let’s break down what this plot means first. By default, when we plot a PCA object, the first two PCs are plotted, PC1 on the x axis, PC2 on the y. Each point represents the PC scores for a specimen in the data set. Notice that the amount of variance explained by our PCs is given and, as expected, PC1 contains most of the variance (55%) and PC2 considerably less (19%). If we plot again, but specify a different combination of PCs, say 1 and 3, we get a different plot, of course. Notice the variance explained by PC3 is predictably less than that of PC2.

plot(pca,1,3)

OK, so based on our PC plots, it looks as if we have two groupings, just like Sternes and Shimada (2020). But, do these groups correspond to largely pelagic vs. benthic species? It’s hard to tell. We don’t really know because we don’t know which species belong to each point in our plots, nor their habitat.

Notice, however, that the names of the coordinates in gpa$coords are pegged to the image and landmark file names. These names are, in fact, important metadata: data about the data. In this case, the metadata are species names and, because we have images of multiple specimens for each species, the specimen number.

head(dimnames(gpa$coords)[[3]])

## [1] "Aculeola_nigra_1"        "Aculeola_nigra_5"
## [3] "Alopias_pelagicus_2"     "Alopias_superciliosus_1"
## [5] "Alopias_vulpinus_1"      "Alopias_vulpinus_2"

These values were maintained throughout the superimposition step and in the PCA operation. The coordinates plotted in the PCA plots are contained in a matrix named x in our pca object. Notice the row names:

pca$x %>% data.frame %>% dplyr::select(Comp1,Comp2) %>% head

##                              Comp1       Comp2
## Aculeola_nigra_1        -0.1347492  0.06824303
## Aculeola_nigra_5        -0.1785675  0.02661025
## Alopias_pelagicus_2     -0.1784004 -0.14478075
## Alopias_superciliosus_1 -0.1411163 -0.12245959
## Alopias_vulpinus_1      -0.1642404 -0.14641379
## Alopias_vulpinus_2      -0.1614284 -0.12151205

So, we have the species names from whence the data, both landmark and PCA, came. Fortunately, Professor Kenaley assembled a table containing all the species for landmarking and the habitat for each. You can download this file and read in the data.

What’s left to do in exploring if benthic and pelagic sharks occupy different regions of morphospace is to combine this information with the PC scores in pca$x. Let’s first load the shark data and consider how we’ll join it to our PCA data using species as the key.

#sneak a peak
head(shark_dat)

## # A tibble: 6 × 3
##   sp                      PCL habitat
##   <chr>                 <dbl> <chr>
## 1 Aculeola nigra         40.4 benthic
## 2 Alopias pelagicus     164.  pelagic
## 3 Alopias superciliosus 272.  pelagic
## 4 Alopias vulpinus      290.  pelagic
## 5 Apristurus albisoma    42.9 benthic
## 6 Apristurus ampliceps   85.5 benthic

So here we have a tibble that contains species, precaudal length (PCL), and habitat data. Our goal is to join these data to our PCA, and later, coordinate data. But how? Our PCA and coordinate data have the species information, but that name also includes the specimen number. That is, “Aculeola nigra” in our shark data won’t match “Aculeola_nigra_1” in our PCA and landmark data. To rip the species name out of the PCA and coordinate data, let’s turn to ‘grep’ (general regular expressions) functions.

PCA <- pca$x %>%
  data.frame %>%
  dplyr::select(Comp1:Comp4) %>%
  rownames_to_column("sp_spec") %>%
  mutate(sp=gsub("(.*)_(.*)_.*","\\1 \\2",sp_spec),
         spec=gsub(".*_.*_(.*)","\\1",sp_spec)) %>%
  left_join(shark_dat)

## Joining with `by = join_by(sp)`

head(PCA)

##                   sp_spec      Comp1       Comp2       Comp3       Comp4
## 1        Aculeola_nigra_1 -0.1347492  0.06824303  0.00242967 -0.09520205
## 2        Aculeola_nigra_5 -0.1785675  0.02661025 -0.00550200 -0.04723901
## 3     Alopias_pelagicus_2 -0.1784004 -0.14478075 -0.03121565  0.26195407
## 4 Alopias_superciliosus_1 -0.1411163 -0.12245959 -0.01276591  0.12160211
## 5      Alopias_vulpinus_1 -0.1642404 -0.14641379 -0.02031808  0.23094078
## 6      Alopias_vulpinus_2 -0.1614284 -0.12151205 -0.02392326  0.26322855
##                      sp spec   PCL habitat
## 1        Aculeola nigra    1  40.4 benthic
## 2        Aculeola nigra    5  40.4 benthic
## 3     Alopias pelagicus    2 163.7 pelagic
## 4 Alopias superciliosus    1 272.4 pelagic
## 5      Alopias vulpinus    1 289.8 pelagic
## 6      Alopias vulpinus    2 289.8 pelagic

With that over with, we can dispense with the ugly PCA plots above and use ggplot to visualize our results with respect to habitat.

PCA %>%
  ggplot(aes(Comp1,Comp2,col=habitat))+geom_point()

PCA %>%
  ggplot(aes(Comp1,Comp3,col=habitat))+geom_point()

Voila! For morphospace described by PCs 1, 2, and 3, it appears that benthic species inhabit a specific region of morphospace.

This is wonderful, but you may be asking, “What is PC1 (or any other) describing?” Our PC points are abstractions of shape, but they don’t represent explicitly what shape that is. To get a sense of what our PCs represent in terms of shape values, we can turn to thin-plate spline analysis.

Note: you’re not asked to do anything like this for the report. Prof. K just wants to show you how you can derive shape changes represented by the PC axes.

#find min and max of each PC
max_PC1 <- which.max(pca$x[,1])
min_PC1 <- which.min(pca$x[,1])
max_PC2 <- which.max(pca$x[,2])
min_PC2 <- which.min(pca$x[,2])

#get the concesus, the mean shape of all data.
M <- gpa$consensus

#plot
par(mfrow=c(2,2))

#plot the change form the concensus to min of PC1
plotRefToTarget(M, gpa$coords[,,min_PC1], mag = 1,method="vector",label = T)
title("min PC1 warp",cex=0.6)

#plot the change form the concensus to max of PC1
plotRefToTarget(M, gpa$coords[,,max_PC1], mag = 1,method="vector",label = T)
title("max PC1 warp",cex=0.6)

#plot the change form the concensus to min of PC2
plotRefToTarget(M, gpa$coords[,,min_PC2], mag = 1,method="vector",label = T)
title("min PC2 warp",cex=0.6)

#plot the change form the concensus to max of PC2
plotRefToTarget(M, gpa$coords[,,max_PC2], mag = 1,method="vector",label = T)
title("max PC3 warp",cex=0.6)

So, it looks like PC1 describes a shape change involving the placement of the dorsal fin (points 2-4) and pelvic fin (points 9 and 10). Lower values of PC1 represent a dorsal and pelvic fins that are displaced posteriorly while higher values represent anterior placements. PC2 largely describes a shape change involving the size of the caudal fin (points 5-8). Notice how low PC2 values represent shifts of points 5 and 8 (the start of the caudal fin) and 7 (the ventral lobe) to the anterior and a shift of point 8 (the dorsal lobe) to the posterior (i.e., elongation). High PC2 values represent a compression of the caudal fin length with point 8 (the dorsal lobe) shifted anteriorly.

And, with a little help from the package ggimage, we can plot images representing the extrema of the first two PCs. Notice the anterior shift of the dorsal fin along PC1 and the shortening of the caudal fin along PC2.

library(ggimage)
PC_extremes <- PCA %>%
  filter(Comp1 %in% range(Comp1)|
         Comp2 %in% range(Comp2)) %>%
  mutate(file_name=paste0(sp_spec,".jpg")) %>%
  dplyr::select(Comp1,Comp2,sp,file_name) %>%
  mutate(imgs =paste0("shark_images/",file_name))

p1 <- PCA %>%
  ggplot(aes(Comp1,Comp2,col=habitat))+geom_point()


p1 + geom_image(data=PC_extremes,aes(Comp1,Comp2,image=imgs), size=.30,inherit.aes = F)+theme_classic()+xlim(range(PC_extremes$Comp1)*1.5)+ylim(range(PC_extremes$Comp2)*1.25)+theme(legend.position = c(0.1,0.2))

Analysis: Part II: Emperical Assessments of Habitat-driven Shape Differences

Our PCA analysis reveals an interesting pattern. This, however, is not a quantitative assessment per se, merely a visual and qualitative result and not dissimilar to the qualitative results reported by Sternes and Shimada (2020). Several quantitative frameworks for assessing differences in shape exist. The geomorph package contains several, but we’ll use just one: a phylogenetically informed Procrustes ANOVA. The function procD.pgls() will do this for us. Like with our anole project in which we fit univariate traits with PGLS, procD.pgls() fits a phylogenetic generalized least-squares model for multivariate data under a Brownian motion model of evolution.

As with our PGLS model fitting in the anole project, we need a tree and the tree from Stein et al. (2018) mentioned above is the most comprehensive. Once this tree file is downloaded, let’s read it in and store it in an object named phy. Notice you’ll need the phytools package and the function readNexus().

library(phytools)

## Loading required package: ape

##
## Attaching package: 'ape'

## The following object is masked from 'package:dplyr':
##
##     where

## Loading required package: maps

##
## Attaching package: 'maps'

## The following object is masked from 'package:purrr':
##
##     map

phy <- readNexus("data/shark_trees.nex")
length(phy)

## [1] 500

Next, let’s restrict our tree file to those species in our data set. For this, we’ll use ape’s keep.tip() which keeps only the tips in a vector, in this case, the species in our PCA and landmark analysis.

sp <- intersect(phy[[1]]$tip.label,PCA$sp %>% unique)
phy2 <- keep.tip(phy,sp)

To undertake the analysis with procD.pgls(), we must input the tree of course and a geomorph.dataframe, a special data frame that includes the coordinates and variables (i.e., habitat) that will be in the model. But, as we’ve discussed above, we have several specimens per species and thus multiple observations for each tip in the tree. procD.pgls() can’t handle that. A common solution to such a problem is to just calculate the mean values of each species. For this, we can turn to a custom function that uses geomorph’s mshape() to compute the mean shape of each species. It will compute the mean shape for each coordinates with the same unique coordinate, that is, species. Notice here that we reorder the resulting array of mean shapes along its third dimension according to the order of species (tip.label) in the tree, a standard practice with comparative methods in R.

#install abind package
#install.packages("abind")
library(abind)
#mean shape of uniquely named coordinates
mean_shape <- function(x){
  array(dim=3)
  sp <- dimnames(x$coords)[[3]]
  m_shapes <- list()
  for(s in unique(sp)){
    sp_n <- which(sp==s)

    m_shapes[[s]] <- mshape(x$coords[,,sp_n])
  }
  m_ <- abind(m_shapes,along=3)
  return(coord=m_)
}

#rename the coordinates
dimnames(gpa$coords)[[3]] <- PCA$sp

mean_coords <- mean_shape(gpa)[,,phy2[[1]]$tip.label]

For the habitat data we’ll add to the geomorph.data.frame, we need to establish a vector that is also limited to our species and ordered according to the tip labels of the tree.

hab <- setNames(shark_dat$habitat,shark_dat$sp)[phy2[[1]]$tip.label]

Now the geomorph.data.frame.

gdf <- geomorph.data.frame(
  mean_coords,
  habitat=hab,
  phy=phy2[[1]] #just one tree!
  )

We can now move on to the Procrustes PGLS. It will take as input the geomorph.data.frame, a model formula, and the tree objects stored in it. The model formula follows model fitting conventions in R with ~ and should reflect our question, “Does shape vary according to habitat (i.e., mean_coords ~ habitat)?” Lastly, procD.pgls() relies on permutations to obtain statistical values, so we must specify the number of permutations with iter. A value of 10,000 is plenty. Also note, messy progress messages are suppressed with print.progress = F. We can then run an ANOVA on this fitted model.

shark_pgls <- procD.pgls(mean_coords ~ habitat, phy = phy, data = gdf,
iter = 10000,print.progress = F)

anova(shark_pgls)

##
## Analysis of Variance, using Residual Randomization
## Permutation procedure: Randomization of null model residuals
## Number of permutations: 10001
## Estimation method: Generalized Least-Squares (via OLS projection)
## Sums of Squares and Cross-products: Type I
## Effect sizes (Z) based on F distributions
##
##           Df       SS         MS    Rsq     F       Z Pr(>F)
## habitat    1 0.000426 0.00042566 0.0051 0.328 -0.8292 0.7891
## Residuals 64 0.083052 0.00129769 0.9949
## Total     65 0.083478
##
## Call: procD.lm(f1 = mean_coords ~ habitat, iter = iter, seed = seed,
##     RRPP = TRUE, SS.type = SS.type, effect.type = effect.type,
##     int.first = int.first, Cov = Cov, data = data, print.progress = print.progress)

Running anova(shark_pgls) produces a table that summarizes the relationship between habitat and body shape while accounting for phylogenetic relatedness. Our main interest is the habitat row, which tests whether benthic and pelagic sharks differ in mean shape. Several columns help us interpret this result.

What does it tell us?

Df The degrees of freedom associated with each source of variation.
SS The sum of squares: the amount of variation attributed to habitat.
MS The mean square, calculated as SS / Df.
RsqThe proportion of variation attributed to habitat in the fitted phylogenetic model.
F The ratio of the habitat mean square to the residual mean square.
Z How far the observed test statistic lies above or below its randomized expectation, measured in standard deviations.
Pr(>F) The permutation p-value: how often randomized results are at least as large as the observed F statistic.

To assess the magnitude of the habitat effect, look first at Rsq, or $R^2$. For example, an $R^2$ of 0.08 would indicate that habitat accounts for 8% of shape variation in the fitted model, with the remaining 92% left in the residuals. This does not establish that habitat causes those differences, but it tells us how much variation is associated with habitat.

The Z column addresses a much different question: How unusual is the observed effect relative to what we would expect without a habitat effect? A Z score of 2 means that the observed log-F statistic is two standard deviations above the mean randomized value. A Z near zero indicates a result close to the randomized expectation. A negative Z indicates a smaller-than-expected statistic.

Finally, Pr(>F), the vaunted p value, provides the permutation test of statistical significance. A small p value indicates that an F statistic as large as ours is unlikely under the null hypothesis. However, statistical significance and effect magnitude are different properties. Habitat could explain a small proportion of shape variation and still yield a significant result. Therefore, its wise to interpret $R^2$ alongside Z and p values

Because our analysis includes 500 alternative phylogenetic trees, we should also ask whether these conclusions depend on the tree used. More on that later. Nonetheless, based on analysis using one of the trees and for this limited data set of ~50 species, there’s no significant difference in mean shape between habitat groups.

Analysis Part III: Evolution in Parallel

Our secondary question, if you remember, was, “Has the body shape of pelagic and benthic sharks evolved at the same rate?”. This is a much different question than the first. We want to know, overall, if the shape of lineages that invaded a particular habitat has evolved faster or slower than those invading another habitat. For this, we’ll turn to the geomorph package once again, in particular, its compare.evol.rates() function. This function calculates net rates of shape evolution for groups of species on a phylogeny from a set of aligned landmarks. The approach is based on between-species differences in morphospace after phylogenetic transformation. In other words, after correcting for phylogenetic relatedness, it compares relative rates of shape change.

Because we’re correcting for phylogeny in this analysis, we need the tree from Stein et al. (2018) mentioned above. Once this tree file is downloaded, let’s read it in and store it in an object named phy. Notice you’ll need the phytools package and the function readNexus().

To undertake the analysis with compare.evol.rates(), we must specify A, the aligned coordinates in a landmark array of mean shape (mean_coords), a tree (more in just a bit), and our previously established vector of habitat groups describing to which group each species in the array belongs.

er <- compare.evol.rates(A=mean_coords, phy=phy2[[1]], method="simulation",gp=hab,print.progress = F)

print(er)

##
## Call:
##
##
## Observed Rate Ratio: 1.0461
##
## P-value: 0.828
##
## Effect Size: -1.1265
##
## Based on 1000 random permutations
##
## The rate for group benthic is 4.4703651655299e-05
##
## The rate for group pelagic is 4.67636903987291e-05

So it appears that neither of the groups is faster than the other (p=0.98). But, we have a problem. You may have noticed that when we loaded our tree file, the length of this list of trees is 500. These are 500 trees produced by Stein et al. (2018) using the bootstrapping method mentioned earlier. Many of these trees are incongruent, that is, they represent different relationships for the sharks and this, in turn, represents some serious phylogenetic uncertainty.

Also notice that in our rate analysis and Procrustes PGLS, we used only one tree in this list (phy=phy2[[1]]). There are 499 other trees we could have used, perhaps each representing a different phylogenetic hypothesis. The results of a comparative analysis like this could, and likely will, vary according to the phylogenetic hypothesis used in it. So what to do?

This is a common problem faced by comparative biologists and, fortunately, there seems to be a consensus among us to repeat our comparative analysis using a random sample or, ambitiously, all of the trees that represent the phylogenetic uncertainty. By repeating an analysis, we produce a series of results based on new parameters (i.e., phylogenetic discordence) to our model. In this case, the new parameters would come from using any or all of the trees. This establishes what is akin to a posterior sample and from this we can extract a posterior distribution of estimates, in our case, a distribution of evolutionary rates.

Therefore, we have before us the proposition of repeating our analysis, let’s say 10 times. To do this, we could randomly sample 10 of the trees and build a posterior distribution of evolutionary rates using a for loop.

set.seed(1234)
phy_sample <- sample(phy2,10)

er_l <- list()


t <- system.time(for(i in 1:length(phy_sample)){
 er_l[[i]] <-compare.evol.rates(A=mean_coords, phy=phy_sample[[i]], method="simulation",gp=hab,print.progress = F) %>% summary
}
)

##
## Call:
##
##
## Observed Rate Ratio: 1.0294
##
## P-value: 0.897
##
## Effect Size: -1.3487
##
## Based on 1000 random permutations
##
## The rate for group benthic is 6.60683272246625e-05
##
## The rate for group pelagic is 6.80080661260081e-05
## Call:
##
##
## Observed Rate Ratio: 1.078
##
## P-value: 0.721
##
## Effect Size: -0.7339
##
## Based on 1000 random permutations
##
## The rate for group benthic is 4.00017209801035e-05
##
## The rate for group pelagic is 4.31207813205717e-05
## Call:
##
##
## Observed Rate Ratio: 1.0816
##
## P-value: 0.717
##
## Effect Size: -0.7012
##
## Based on 1000 random permutations
##
## The rate for group benthic is 3.79594400997916e-05
##
## The rate for group pelagic is 4.10561687835116e-05
## Call:
##
##
## Observed Rate Ratio: 1.0651
##
## P-value: 0.757
##
## Effect Size: -0.8733
##
## Based on 1000 random permutations
##
## The rate for group benthic is 4.38283527629786e-05
##
## The rate for group pelagic is 4.66817649503554e-05
## Call:
##
##
## Observed Rate Ratio: 1.0837
##
## P-value: 0.706
##
## Effect Size: -0.6759
##
## Based on 1000 random permutations
##
## The rate for group benthic is 3.2985366824756e-05
##
## The rate for group pelagic is 3.57446961600127e-05
## Call:
##
##
## Observed Rate Ratio: 1.0968
##
## P-value: 0.662
##
## Effect Size: -0.5397
##
## Based on 1000 random permutations
##
## The rate for group benthic is 4.14120368930612e-05
##
## The rate for group pelagic is 4.54219017217209e-05
## Call:
##
##
## Observed Rate Ratio: 1.0386
##
## P-value: 0.855
##
## Effect Size: -1.2074
##
## Based on 1000 random permutations
##
## The rate for group benthic is 3.80932742752085e-05
##
## The rate for group pelagic is 3.95635045754476e-05
## Call:
##
##
## Observed Rate Ratio: 1.1213
##
## P-value: 0.593
##
## Effect Size: -0.2801
##
## Based on 1000 random permutations
##
## The rate for group benthic is 4.04929432784595e-05
##
## The rate for group pelagic is 4.54052890871042e-05
## Call:
##
##
## Observed Rate Ratio: 1.0611
##
## P-value: 0.773
##
## Effect Size: -0.9218
##
## Based on 1000 random permutations
##
## The rate for group benthic is 3.78910221146332e-05
##
## The rate for group pelagic is 4.02062231842201e-05
## Call:
##
##
## Observed Rate Ratio: 1.0465
##
## P-value: 0.827
##
## Effect Size: -1.1137
##
## Based on 1000 random permutations
##
## The rate for group benthic is 3.8348716859824e-05
##
## The rate for group pelagic is 4.01326656809464e-05

Here we used set.seed() to make the sample() function randomly sample the same set of 10 trees. This is important so that we can all perform the same exact analyses, that is, our analyses are repeatable. You’ll notice that the loop uses each random tree to repeat the analysis and store the summary of the model (i.e., the rate comparisons) to the list er_l. Notice also that the entire loop is wrapped in system.time(). This is done so that, in this preliminary analysis, we can record how much time the loop took. Printing t reveals that it took 7 seconds.

Because our results are stored in a list, we can use lapply() to extract the rate comparisons. lapply() takes a list and applies a function to each element. In our case, we need to encode a custom function that extracts sigma.d.gp and sigma.d.ratio, the rate for each group and rate ratio between them, respectively. For this, we ask the function to work on every value of er_l, read it as x, then combine sigma.d.gp and sigma.d.ratio and store it in er_ temporarily. We then apply a name to the third value “ratio”, and return the vector. lapply() returns a list, so we combine all elements of it using do.call(). We apply the row-binding function rbind() to the list using the pipe and . and lastly, make the output a data frame.

er <- lapply(er_l,function(x) {
  er_ <- c(x$sigma.d.gp,x$sigma.d.ratio)
  names(er_)[3] <-"ratio"
  return(er_)
}) %>% do.call(rbind,.) %>% data.frame

head(er)

##        benthic      pelagic    ratio
## 1 6.606833e-05 6.800807e-05 1.029360
## 2 4.000172e-05 4.312078e-05 1.077973
## 3 3.795944e-05 4.105617e-05 1.081580
## 4 4.382835e-05 4.668176e-05 1.065104
## 5 3.298537e-05 3.574470e-05 1.083653
## 6 4.141204e-05 4.542190e-05 1.096828

With a little massaging with pivot_longer(), we can plot the posterior distribution of rates for each habitat like so.

er %>%
  pivot_longer(benthic:pelagic) %>%
  ggplot(aes(name,value)) + geom_boxplot()

Indeed, it appears that when we estimate evolutionary rates for 10 random trees, accounting for uncertainty in species relationships, pelagic species evolve about as fast as benthic ones.

Now, this is all well and good. But, most comparative biologists would argue that 10 random trees do not make a posterior distribution. We should probably sample many more or, perhaps, use the entire set of trees.

What’s to stop us? Well, if we shoot for the stars and use all 500 trees in 500 separate analyses, we’d be looking at running a for loop 50 times longer than 10 trees took (roughly 350 s or 6 minutes, see figure below). In the world of comparative methods, this isn’t such a long time, but remember, this is a preliminary analysis of only 90 or so of the 265 we hope to include. The figure below indicates that including all 220 species and using all 500 trees would take ~2500 s or about 40 minutes!!!

## Warning in geom_text(aes(50, 500, label = "computed"), inherit.aes = F): All aesthetics have length 1, but the data has 48 rows.
## ℹ Please consider using `annotate()` or provide this layer with data containing
##   a single row.

## Warning in geom_text(aes(175, 2200, label = "predicted"), inherit.aes = F): All aesthetics have length 1, but the data has 48 rows.
## ℹ Please consider using `annotate()` or provide this layer with data containing
##   a single row.

The polynomial relationship between time and number of taxa in comparative analysis, in this case computing evolutionary rates of shape change with geomorph’s compare.evol.rates().

We should, therefore, be prepared for the long haul. But, hold on. I don’t know about you, but on most days, I don’t have 40 minutes to spare, even for very interesting comparative analyses. Fortunately, to avoid 100s of iterations of the same operations on different data, we can make use of a very common work-around in scientific computing: parallelization, the simultaneous execution of different pieces of a larger computation across multiple computing processors or cores. In fact, this sort of problem is considered embarrassingly parallel, that is, it is so very easy to split this task into many parallel subtasks. Specifically, we have 500 identical tasks; we need only to break these up into subtasks that run in parallel. That’s what we’ll do.

R has several packages for parallel computing. Perhaps the most versatile in the future package. It works across operating systems and has a relatively simple workflows.

future_lapply() from the future.apply package is simply an extension of lapply() using the functions of future that takes the tasks performed on each item in a list and spreads the tasks across multiple cores on a computer. This is perfect for embarrassingly parallel problems.

For example, say we wanted to do something that’s simple, but takes just a little bit of time, like generating 10 million random values from a normal distribution (mean=0, sd=1) any number of times. Let’s encode a function that does this and allows one to specify how many times to do it.

my_fun <- function(x){for(i in x) rnorm(1e7)}

For comparison, let’s first use the non-parallel lapply() to run the function 50 times and then use a typical workflow using future_lapply() to do the same. We’ll breakdown what’s happening here afterward.

library(future)
library(future.apply)
# Run sequentially
set.seed(1234) #for repetition
t_nomc <- system.time(
  lapply(1:50, my_fun)
)

# Run in parallel
# Set up parallel R sessions, leaving two cores available

plan(
  multisession,
  workers = availableCores(omit = 2)
)

set.seed(1234) #for repetition
t_mc <- system.time(
  future_lapply(1:50, my_fun, future.seed = TRUE)
)

# Shut down the background workers
plan(sequential)

print(t_nomc)

##    user  system elapsed
##  12.848   0.323  13.206

print(t_mc)

##    user  system elapsed
##   1.056   0.157   7.030

plan() controls how the work runs. It creates separate background parallel R sessions and works on Windows, macOS, and Linux. Each session will be a worker, and the work of the 50 operations is distributed across workers rather than repeated in full by every worker. With workers = availableCores(omit = 2), we’re asking that we distribute the work over the number of available cores minus two usings one of future’s handy functions for determing the number of cores. Most modern laptops and desktops have at lease a half dozen cores, but we don’t want all of them to be used by the operation. We should leave a few cores that the computer can use for operations running in the background.

future_lapply() takes the identical arguments—list then function to apply over list values—but has a few more devoted to controlling the parallel operations. Because my_fun() generates random values, we use future.seed = TRUE. The other set.seed() calls also make for reproducible parallel results.

We should shut down the parallel session when we don’t need it and that requires that we run plan(sequential), returning operations back to sequential.

Note that we ran the sequential and parallel operations in system.time() so that we can record how long each takes. As you can see, the parallelized operation was considerably faster than lapply(). You may be asking, “Wait, if we divided the work over 6 cores, why didn’t we see a 6-fold increase in speed?” That’s a great question. We don’t see that linear increase because starting workers and transferring data takes time, that is, parallelization has overhead. A parallel apparach most useful when each task takes enough time to outweigh that overhead. Like say, say running PGLS models and evolutionary rates analyses on large data sets.

Thus, this framework looks like it could really speed up our estimation of body shape evolutionary rates. You are tasked with assessing habitat-driven differences in shape and evolutionary rates using all species in the data set and all 500 of the phylogenetic trees from Stein et al. (2018) using a parallelized approach.

Project Report

Please submit your report and all associated data to your team GitHub repository as an .Rmd document with HTML output that addresses the following:

Establish an array suitable for analysis using the StereoMorph and geomorph functions outlined above. Construct this from all landmark files in the “shark_landmark” directory in your team’s repo. Procrustes align them.
Does habitat result in the occupation of a different regions of morphospace? Please qualitatively answer this question using a ggplot-rendered morphospace based on the first two PCs from a principal components analysis of your alignment.
Is there an emperical shape difference between habitats? Please assess this emperically using proc.pgls().
Is the rate of morphological evolution significantly different between different habitat types?

Answer these last two questions based on results produced through parallelization of your analyses including each of 500 phylogenetic trees.

Specifically . . .

For Procrustes PGLS, plot the distribution of $R^2$ and report the proportion of trees yielding ANOVA p-values below 0.05.
Plot the distribution of evolutionary rate estimates created through parallelization of your analyses.
Lastly, what inferences regarding ecology and behavior can you make concerning the relationship between habitat and both shape and rates of morphological evolution?

In answering your questions, your .Rmd should include the following components:

A YAML header that specifies HTML output, the authors, and a bibliography named “BIOL3140.bib”. Submit this bibliography as well!
Sections including an introduction, methods, results, discussion, author contributions, and references. Make sure that each, aside from the references, includes one to two short paragraphs. Specifically:
- Introduction: Frame the questions, indicating why they are important, what background work has been done in this realm, and how you will answer them. Please include at least one reference to support the summary of previous work. Note: this can be done easily by refiguring the introduction to this project report.
- Methods: Explicitly state how you answered the questions, including a narrative of all the analyses, both qualitative and quantitative.
- Results: Include any appropriate figures or tables and a narrative of the main results that are important to answering the questions.
- Discussion: Succinctly declare how the results relate to the question and how they compare to previous work devoted to the topic. In addition, be sure to comment on the importance of your findings to the broader topic at hand. Please include at least one reference to another relevant study. Note: circling back to the introductions, both to this project description and your report, will be helpful here.
- Author contributions: Briefly outline what each team member contributed to the project.
- AI-use statement: Briefly state how AI was used in the completion of the report requirements.

Each team should push one report Rmd as “Module5_TeamX.Rmd” where “X” is the team number. Please also submit all associated files and data (e.g., .bibtex files, .csv files, etc.). This means one team member should push the team’s submissions to their team’s GitHub directory, i.e., “Module5_Team1”, if in Team 1. Project reports should be pushed by 11:59 PM on Sunday, November 1st.
